Primary Vacuum Pumps

Liquid Ring Pump

  • Accommodating to water & solvents
  • Very Forgiving

short_path_distillation_high_vacuum_terpene_cbd_thc_cannabis_distillate_clear_clean_solventfree_fractional_distillation

Rotary Vane, Oil-Sealed Mechanical Pump

high_vacuum_thin_film_short_path_distillation_distillate_the_clear_concentrates_golden_oil_extracts_fractional_fraction_solventfree_isolate_winterize_crystalize

Rotary Vane Pump

  •  Compact
  • Sensitive to solvents

short_path_thin_film_vacuum_distillation_distillate_cbd_thc_terpenes_frational_distillate_the_clear_concentrate_solventfree_refine

Dry Vacuum Pumps

One Stage Roots Blower Pump Assembly

short_path__distillation_thin_film_wiped_distillate_concentrate_clear_refine_solventfree_extracts_dabs_waterclear_terpenes_cbd_thc_isolate

Roots Blower Pump

  • Dry Running
  • High operating speeds

High Vacuum Pumps: Oil Diffusion Pumps

short_path_distillation_diffusion_pump_high_vacuum_pressure_distillate_clear_solventfree_thc_cbd_isolate_crystaline_winterization

Pump Construction

short_path_distillation_diffusion_pump_vacuum_distillate_solventfree_cbd_thc_clear_concentrates_extracts_pure_cannabinoids_terpenes.jpg

How Diffusion Pumps Work

thin_film_short_path_frational_distillation_wiped_film_thc_cbd_clear_concentrates_solventfree_isolate_crystalize_extraction_winterize

short_path_fractional_distillation_thin_film_wiped_rollers_solventfree_clear_concentrates_cannabis_extracts_hemp_processors_producers_edibles_420_710

Condensers to Enhance Vacuum

pV = nRT è

  • volume is reduces in transitioning from vapor phase to liquid phase, or vapor pressure decreases with temperature

Gas Flow Conductance

Viscous and Molecular Flow

short_path_distillation_molecular_flow_terpene_cbd_thc_isolation_fraction_reintroduction_mixing_winterizing_concentrate_dabs

Viscous Flow:

Distance between molecules is small; collisions between molecules dominate; flow through momentum transfer; generally P greater than 0.1 mbar

Transition Flow:

Region between viscous and molecular flow

Molecular Flow:

Distance between molecules is large; collisions between molecules and wall dominate; flow through random motion; generally P smaller than 10 mbar

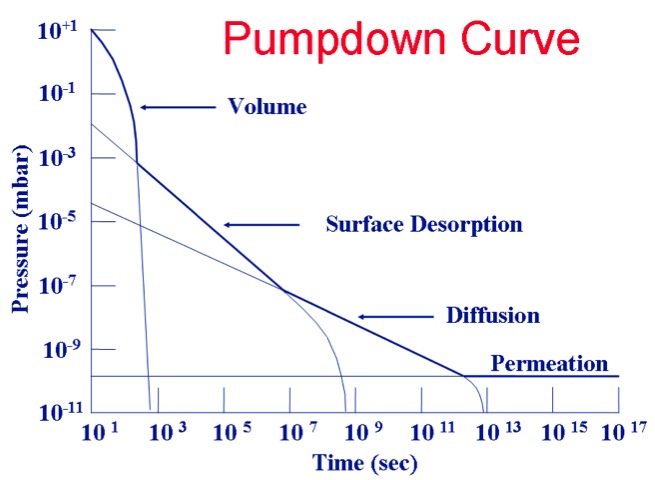

short_path_fractional_distillation_cannabis_oil_cbd_thc_clear_terepenes_isolate_crystalize_winterization

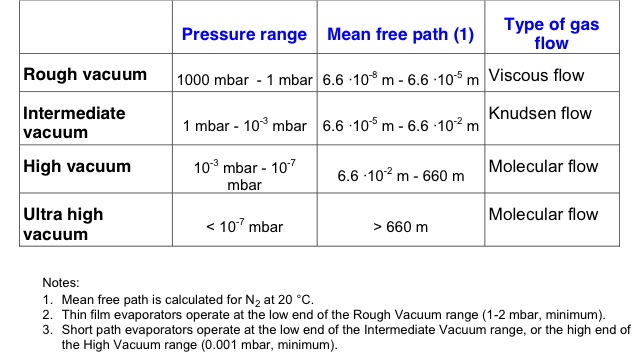

Vacuum Pressure Ranges

short_path_thin_wiped_film_fractional_distillation_cannabis_oil_the_clear_concentrate_cbd_thc_terpene_sepation_wnterization_filtration_waterclear_extracts_dabs_edibles





More on Vacuum

Vacuum System Configuration

Vacuum pumps

  • Liquid ring pump
  • Rotary vane pump
  • Roots vacuum pump
  • ScrewLine pump
  • Oil diffusion pump
  • Pump sets

Pressure measurement

  • Diaphragm vacuum gauge
  • Pirani vacuum gauge

Vacuum Pumping Methods

high_vacuum_short_path_distillation_thin_wiped_film_evaporator_thc_cbd_hemp_concentrate_isolate_crystalize_clear_terpenePressure of 1 Standard Atmosphere: 760 TORR, 1013 mbar or, at Sea Level, 0° C and 45° Latitude

Pressure Equivalents

Atmospheric Pressure (Standard) =

vacuum_pressure_short_path_distillation_fractional_distillate_thc_cbd_clear_terpenes_solventfree_clean_cannabis_oil_hightech_distillate_dabs_honeyoil_hash_420_710.png

Vapor Pressure of Water at Various Temperatures

boiling_point_short_path_distillation_fractional_distillate_cbd_thc_separation_terpenes_clear_golden_oil_cannabis_hemp_concentrate _remove_smell_taste.png

Pressure Ranges

high_vacuum_short_path_distillation_cannabis_hemp_terpene_cbd_thc_cannabinoid_separation_clear_process_waterclear_filtration_no_winterization_extracts_dabs_production_scale











THIN FILM/SHORT PATH EQUIPMENT

General Equipment Considerations

thin_film_short_path_distillation_cannabis_hemp_cbd_thca_crystalize_concentrate_frationate_legal_hightech

short_path_evaportator_2_inch_4_inch_6_inch_cbd_thc_concentrate_fration_separation_isolation_terpenes_holywater

Major Components

  • 1 Feed
  • 2 Product distribution plate
  • 3 Heating fluid
  • 4 Vacuum nozzle
  • 5 Distillate
  • 6 Cooling
  • 7 Residue
  • 8 Heating jacket
  • 9 Roller wiper system
  • 10 Internal condenser

wiper_rollers_thin_film_shortpath_distillation_thc_cbd_distillate_pure_cannabis_oil_clear_solventfree_separation_terpenes_cbda_thca_cannabinoids_short_path_kit

Horizontal Section Through A Short Path Distiller

short_path_disiller_evaporator_cbd_thc_distillate_shortpath_fractional_disitllation_terpenes_clear

Tasks of the Wiper System

  • Uniform distribution of the product onto the evaporator surface
  • Permanent mixing of the product film
  • Improvement of heat transfer from the heated wall into the product film
  • Exclusion of “Hot Spots“
  • Reduction of residence time

Characteristics of the UIC’s Roller Wiper System on all KDL and KDT Models

  • Open wiper basket design
    minimizes pressure drop between evaporation and condensation
  • Good mixing of the product film
    improves the evaporation of volatiles
  • Overlapping of wiper rollers
    avoids unwiped spots and formation of “Hot Spots“
  • Self-cleaning wiper elements
    minimizes maintenance
  • Short residence time
    reduces temperature history of product

Wiped Film Distillation

  • wiped_film_distillation_thc_cbd_short_path_fractional_separation_concentrate_clear_golden_water_terpene

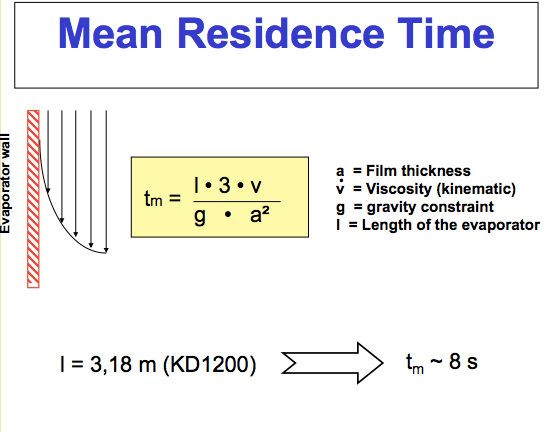

  • Evaporation occurs on the wall of a cylindrical evaporator as the feed product falls down the cylinder wall and is heated above its boiling point by heat applied to the exterior of the cylinder.
  • Excludes the disadvantages of batch-distillation:
    • Lower pressure in the evaporator is possible
    • Reduces the residence time at high temperature, even in large units.

Result: Thermal decomposition is being avoided

Types of Thin Film Evaporators

  • Single Tube Falling Film Evaporator w/external condenser
  • Multiple Tube Falling Film Evaporator w/external condenser
  • Falling Film Degasser (packing) w/external condenser
  • Wiped Film Evaporator w/external condenser
  • Short Path Evaporator w/internal condenser

Thin Film (Wiped Film) Evaporators

thin_film_dhort_path_fractional_distillation_classes_clearclass_terpene_isolate_concentrate_distillate_cbd_thc_highcbd_crystal

  • Residence time:
    less than 1 minute
  • Pressure range:
    down to 1 mbar
  • Not an equilibrium device
  • ~ 1 theoretical plate
  • Condenser is external to Evaporator
  • 30oC rule —

   pressure f( temperature)



Falling Film Evaporators

falling_film_evaporators_short_path_distillation_cbd_thc_fractional_clear_class_training_consulting_highcbd

Residence time: several minutes

often with recycling

Pressure range: down to several mbar Not an equilibrium device

~ 1 theoretical stage

Short Path Evaporators
(a subset of Wiped Film Evaporator)

short_path_evaporator_steel_distillation_fraction_terpene_isolate_crystaline_pure_cbd_classes_clear_concentrate

  • Residence time:
    less than 1 minute
  • Pressure range:
    down to 0.001 mbar
  • Not an equilibrium device
  • ~1 theoretical plate
  • Condenser is inside the Evaporator
  • 30oC rule

Wiped Film   vs. Short Path

  • Thin Film Evaporator
    – External condensation
    –  Lowest operation   pressure: ~ 1 mbar
    –  Main application:
    Separation of high   contents of volatiles
  • Short Path Distillator
    – Internal condensation
    –  Lowest operation   pressure: 0.001 mbar
    –  Main application:
    Distillation of heat   sensitive products
