Solvent Recovery

FALLING FILM 100 ROLLED FILM 30

FFE-50 and RF-40 Alcohol Recovery Unit
SOLVENT RECOVERY EVAPORATOR SYSTEM
Stainless Steel Castors
304SS Bench Frame
Dimensions: 262″W x 114″T x 54″D​

Peer Review
PSI
NRTL (All Electrical)​

EVAPORATOR
316 Stainless Steel
1.00 mSq. & 0.30 Sq Meter Surface Area

Electrical Special ons:
230V 3 Phase Up to 25 Amps (Based on Configuration) 480V 3 Phase 75 Amps
Electrical Classi ca on: C1D2

General Operation
Evaporator Temperature Range: Ambient to 300C
Cold Trap: -50
Ultimate Vacuum: 1 Torr
Flow Rate: ~200-400 L/hr​
​​​
​​​Circulator Fluids Needed
Marlotherm SH for Hot Oil Circulator Ethylene Glycol for Condenser Circulators Ethanol for Cold Trap

Unit Weight: 8900 lbs
Requires a Forklift for Unloading of Truck

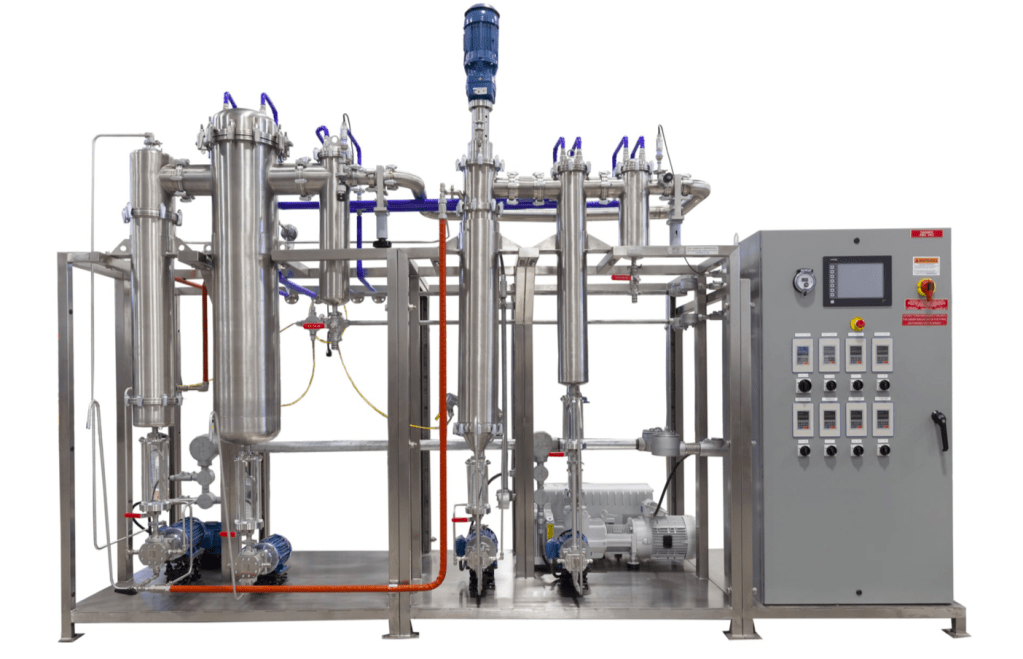

FALLING FILM 200 ROLLED FILM 50


Falling_film_evaporator_solvent_recovery_concentrate_isolate_distillation_wiped_film_short_path_ethanol_extracts_hemp_cbd
SOLVENT RECOVERY EVAPORATOR SYSTEM
Stainless Steel Castors
304SS Bench Frame

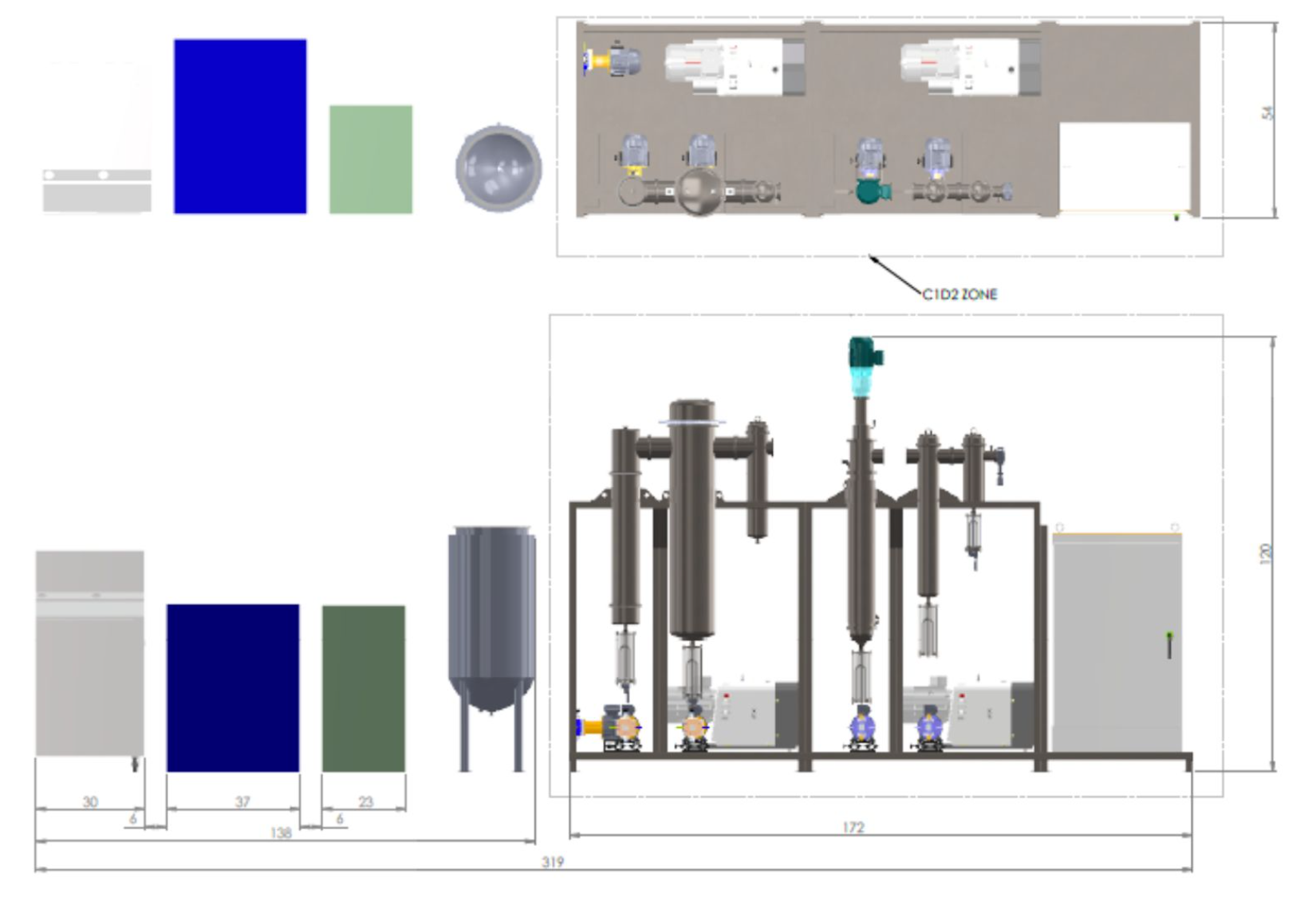

Dimensions: 319″W x 120″T x 54″D​

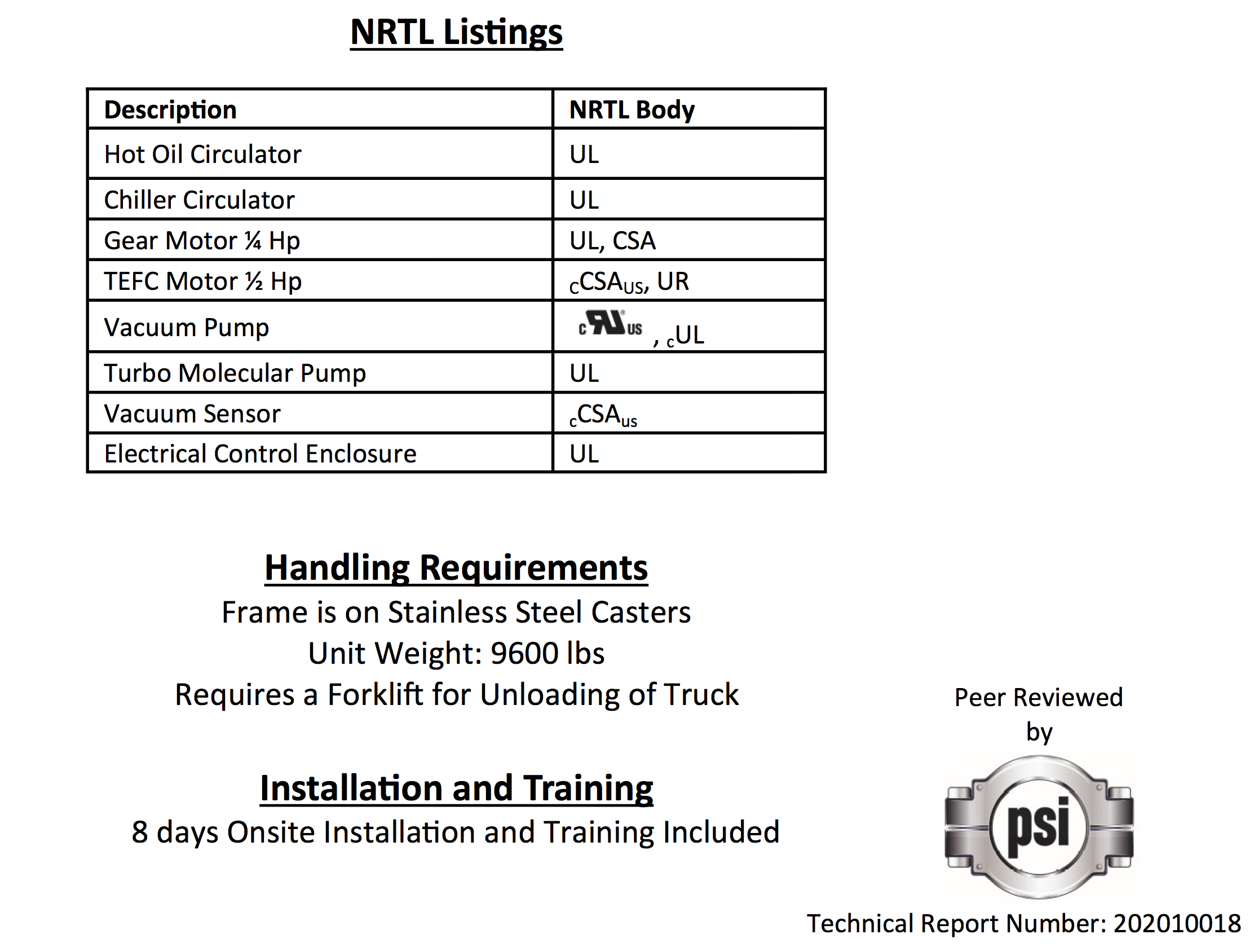

Peer Review
PSI
NRTL (All Electrical)​

EVAPORATOR
316 Stainless Steel
2.00 mSq. & 0.50 Sq Meter Surface Area

Electrical Special ons:
230V 3 Phase Up to 25 Amps (Based on Configuration) 480V 3 Phase 105 Amps
Electrical Classi ca on: C1D2

General Operation
Evaporator Temperature Range: Ambient to 300C
Cold Trap: -50
Ultimate Vacuum: 1 Torr
Flow Rate: ~400 to 800L/hr​
​​​
​​​Circulator Fluids Needed
Marlotherm SH for Hot Oil Circulator Ethylene Glycol for Condenser Circulators Ethanol for Cold Trap

Unit Weight: 9600 lbs
Requires a Forklift for Unloading of Truck

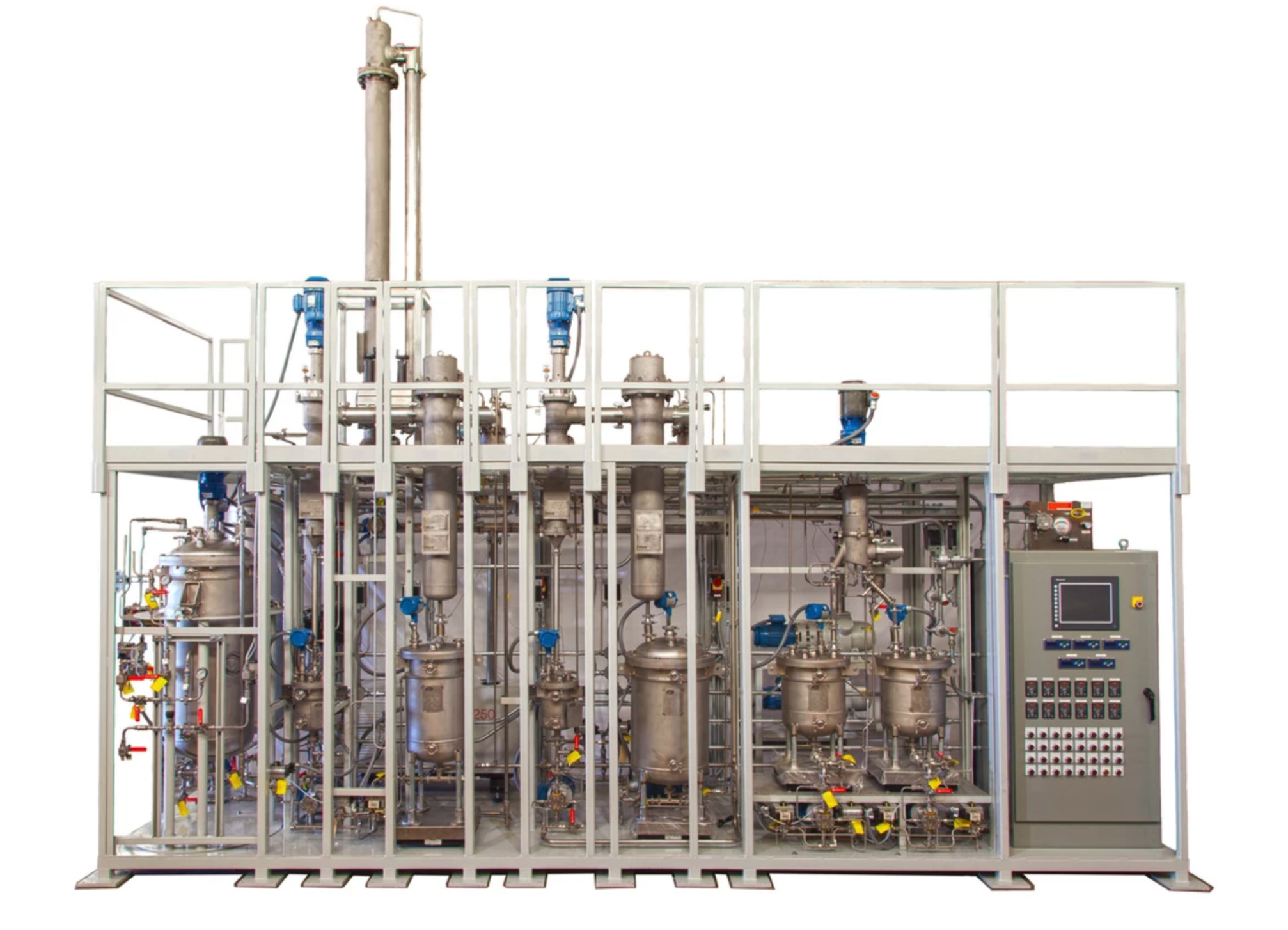

Ask us about our Custom Distillation Pilot Plants: Ethanol Extraction, Solvent Recovery Solutions, and BETA TEST PROGRAMS!





Processing rates are based on the system’s capacity to feed crude into the evaporator: average runtimes, yields, and final potency are dependent on input material, generally base on extracted biomass material anatomy, quality, and processing protocol.Check with your local Fire Marshall, Federal, and Industry Regulators for additional information.Shipping dimensions and weights may vary.All specification subject to change.Stock photo may not represent actual system as sold to date.Product performance, specification, and packages subject to change.Customized systems may have longer lead times. Equipment manufactured to be used only for legal purposes.All ORDERS ARE SUBJECT TO HELDERPAD’S STANDARD TERMS AND CONDITIONS OF SALE AGREEMENT.  Please contact a member of the Helderpad team for more information: (312) 884-1716 or inquiries@helderpad.com
